Wingliner Open Top: The Convertible.
The “topless” for the whole day. Due to its fast process of loading and unloading, it helps to save time and to avoid traffic congestion. Our convertible is the favorite choice for distribuiton of construction materials, metal frames, glass, and traffic planners as well - besides that, our big boy Open Top can deal with cranes without a hitch.
Advantages
Fast and simple opening
Theft protection
Permanent advertising space
Rain shelter
Variable load fastening
Effective sealing
Simple assembly
Downloads
The Wingliner Open Top to take with you.
Download the technical specifications as a PDF or use our ROI calculator to find out how quickly the investment pays off for you!

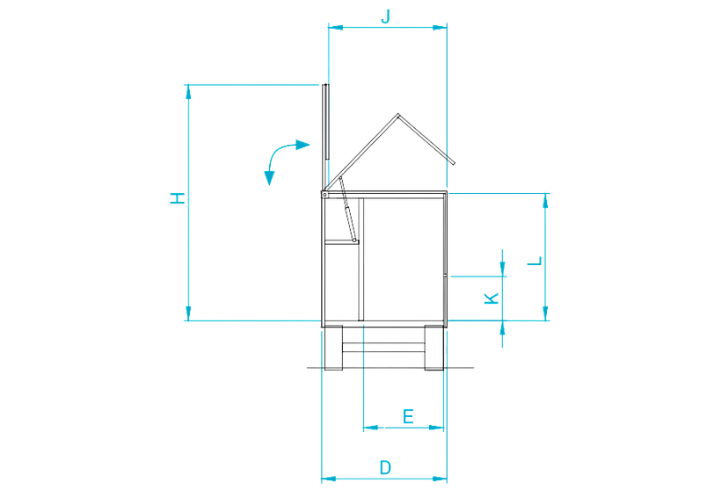

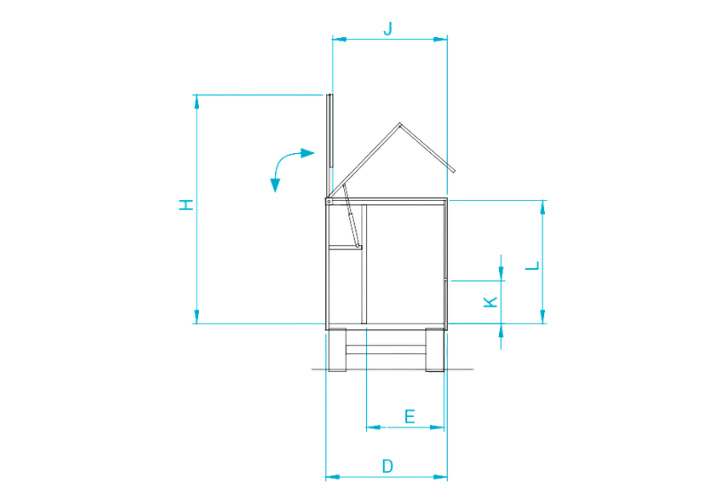

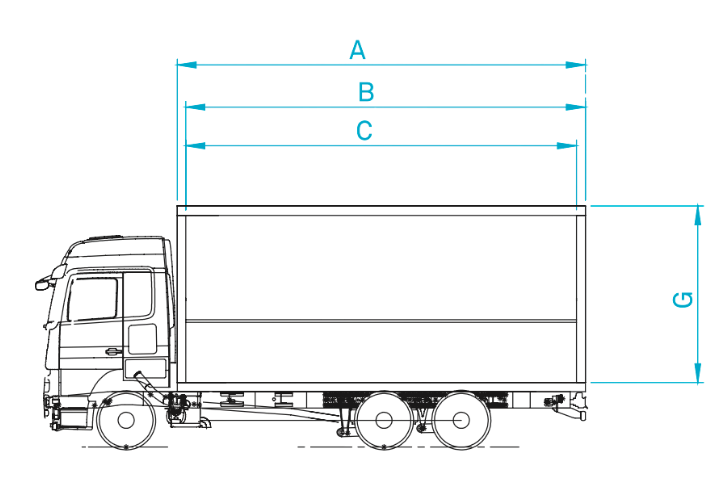

| A | Overall external length |
| B | Internal usable loading length = A - 165 mm |
| C | Usable loading length from the side = B - 165 mm |
| D | Overall external width = Standard 2.550 mm |
| E | Rear loading width = Standard 1.830 mm |
| G | Overall external height with the Open Top closed = L + 50 mm |
| H | Overall external height with the Open Top opened = L + J + 145 mm |
| J | Roof loading width = Standard 2.335 mm |
| K | Bottom sidewall height |
| L | Internal height |
| Zertifikate | |
|---|---|
| Beverages | Optional |
| Beer Kegs | Optional |
| Load Safety - XL | Optional |
| Explosion Protection - EX | Optional |
| Chemicals | Optional |
| Automotive Industry | Optional |
| Loading Sizing | |
|---|---|
| Loading height sizing in steps of 50 mm for assemblies with Aluminum Snap or Tarpaulin; Composite panel and temperglass with regular sizing | 1.500 – 3.000 mm |
| Loading length with regular sizing | < 10.000 mm |
| "Internal width between sidewalls (without palett stop)" | 2.481 mm |
| Feasibility for structure with special length and width | |
| Sidewall Versions | |
|---|---|
| One-sided opening configuration (left or right) | X |
| Bilateral opening configuration | - |
| Aluminum snap 25 mm | X |
| Composite panel with 1,2 mm of aluminum layer | X |
| Composite panel with 0,6 mm of aluminum layer | X |
| Aluminum core | X |
| "Tarpaulin and aluminum snap 25 mm (Tarpaulin not included)" | X |
| PEP-core translucent | - |
| Tempered glass 25 mm | - |
| Lifting roof | - |
| Vehicle Weight | |
|---|---|
| (t) | 7,5 – 26,0 |
