Wingliner Sideloader: The Workhorse.
Strengthen your one-man fleet and revitalize its back. Just like the dream of all the beverage suppliers, this model provides a wide and easy loading and unloading - also directly at the customer. By default, the Sideloader has a lifting platform along its entire lateral. In addition to being a great investment, its also has a short payback period.
Advantages
Fast and simple opening
Theft protection
Permanent advertising space
Rain shelter
Variable load fastening
Effective sealing
Simple assembly
Downloads
The Wingliner Sideloader to take with you..
Download the technical specifications as a PDF or use our ROI calculator to find out how quickly the investment pays off for you!

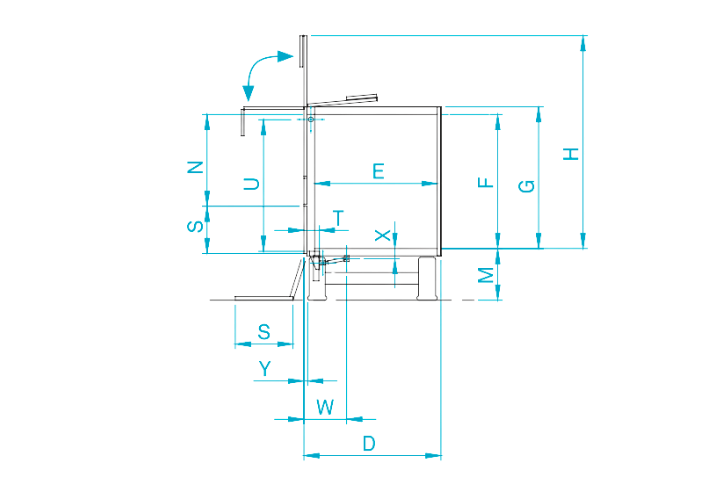

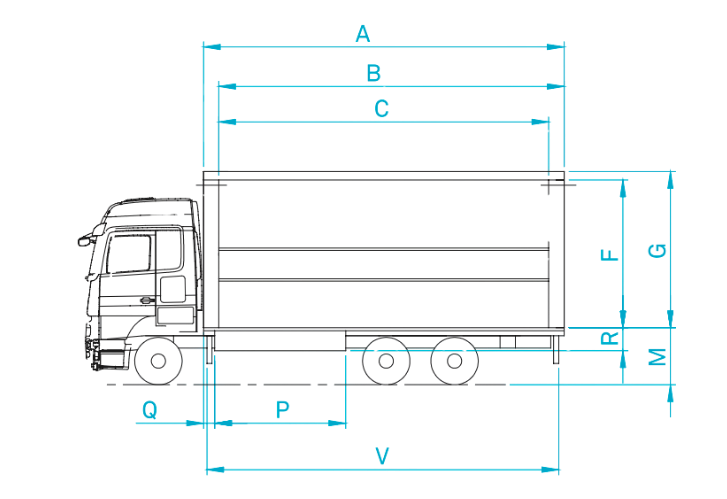

| A | Overall external length |
| B | Internal usable loading length = = A - 341 mm |
| C | Usable loading length from the side = B - 341 mm |
| D | Overall external width = Standard 2.550 mm |
| E | Loading width = Standard 2.228 mm |
| F | Loading height |
| G | Overal height when closed = F + 180 mm |
| H | Overal height when opened 180° = G + (F / 2) + 140 mm |
| M | Loading floor height |
| N | N Wingliner sidewall clear width = F - S + 102 mm |
| P | Total length of the lifter cylinder box 2.540 mm |
| Q | Longitudinal positioning of the lifter cylinder box 370 mm |
| R | Total height of the lifter cylinder box 330 mm |
| S | Width of the lifting platform |
| T | Lateral positioning of the lifter cylinder box 252 mm |
| U | Height from the upper axis center of the lift system to the top face of lifter cylinder box = F + 6 mm |
| V | Overall distance between the lifter C-rails = A - 427 mm |
| W | Sliding cylinder connection point = 604 mm |
| X | Sliding cylinder connection point = 177 mm |
| Y | Minimum distance between the lifting plataform and the tires = 70 mm |
| Certifications | |
|---|---|
| Beverages | X |
| Beer Kegs | X |
| Load Safety - XL | X |
| Explosion Protection - EX | Optional |
| Chemicals | Optional |
| Automotive Industry | Optional |
| Loading Sizing | |
|---|---|
| Loading height sizing in steps of 50 mm for assemblies with Aluminum Snap or Tarpaulin; Composite panel and temperglass with regular sizing | 1.500 – 3.000 mm |
| Loading length with regular sizing | < 10.000 mm |
| "Internal width between sidewalls (without palett stop)" | 2.228 mm |
| Feasibility for structure with special length and width | |
| Sidewall Versions | |
|---|---|
| One-sided opening configuration (left or right) | X |
| Bilateral opening configuration | - |
| Aluminum snap 25 mm | X |
| Composite panel with 1,2 mm of aluminum layer | X |
| Composite panel with 0,6 mm of aluminum layer | X |
| Aluminum core | X |
| "Tarpaulin and aluminum snap 25 mm (Tarpaulin not included)" | X |
| PEP-core translucent | - |
| Tempered glass 25 mm | - |
| Lifting roof | - |
| Vehicle Weight | |
|---|---|
| (t) | 7,5 – 26,0 |
